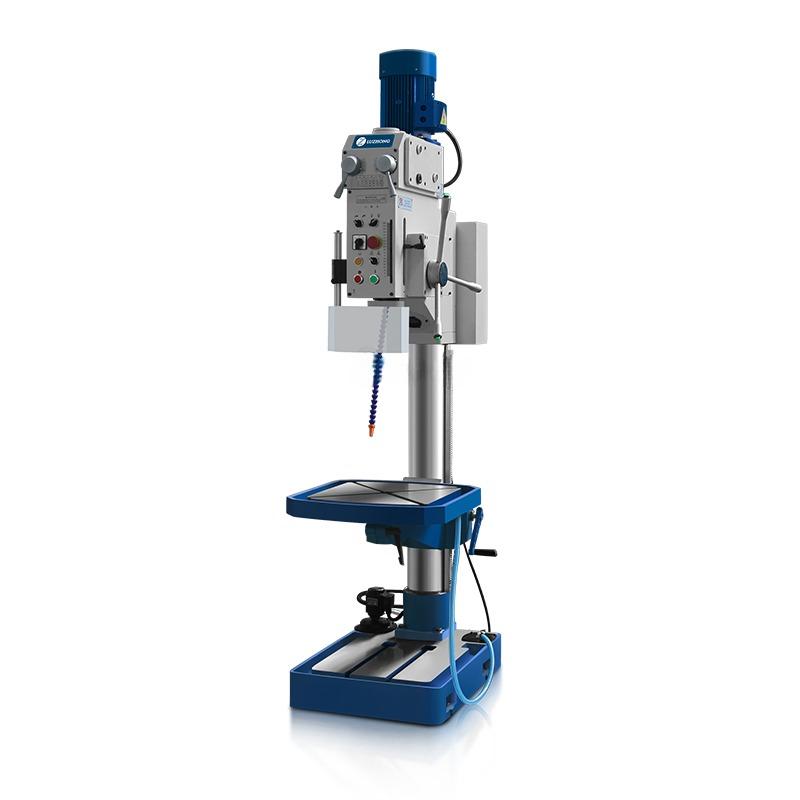

Z5030A Vertical Drilling Machine
MACHINE description
|
Model |
unit |
Z5030A |
|
Max. drilling capacity |
Mm |
30 |
|
Diameter of column |
Mm |
120 |
|
Distance spindle axis to column surface |
Mm |
320 |
|
Max. distance spindle nose to base |
Mm |
1100 |
|
Max. spindle travel |
Mm |
135 |
|
Spindle taper |
- |
MT4 |
|
Spindle speed steps |
- |
12 |
|
Spindle speed range |
r/mm |
125-3030 |
|
Spindle feed steps |
- |
3 |
|
Spindle feed range |
mm/r |
0.1-0.3 |
|
Table travel |
mm |
520 |
|
Table size |
mm |
500*420 |
|
Stand table size |
mm |
645*455 |
|
Main motor power |
KW |
1.1/1.5 |
|
Max. external dimension |
Mm |
875x510x2100 |
|
N.W |
Kg |
410 |
