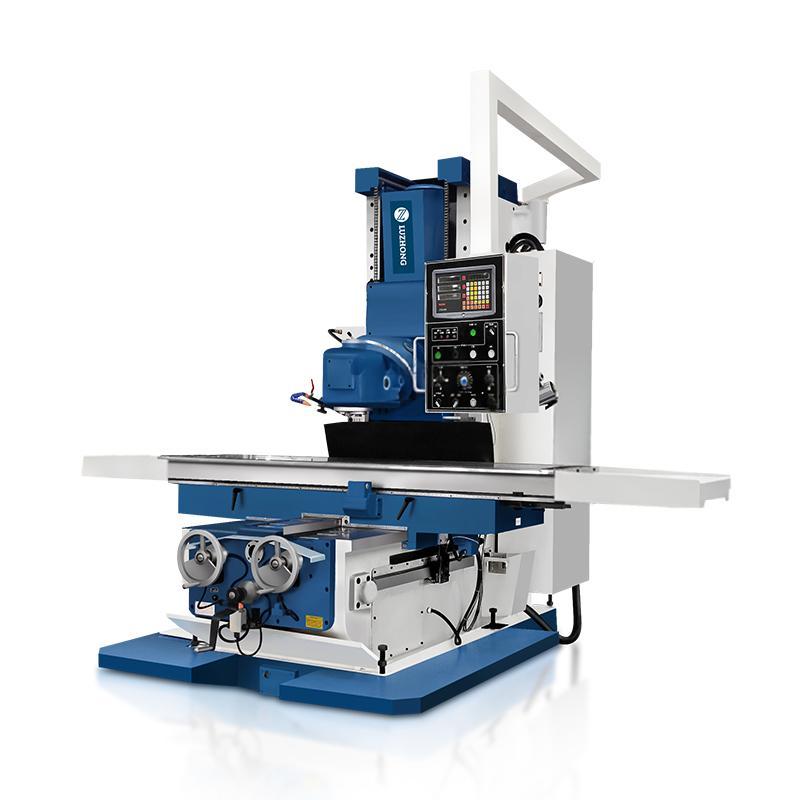

X715 Bed Type Milling Machine
MACHINE description
|
Specifications |
Units |
X715 |
|
Tablesize |
mm |
2100x500 |
|
Tablestroke(X.Y) |
mm |
1500x670 |
|
Vertical travel of headstock |
mm |
0-670 |
|
T-type slot numbers / width /space |
mm |
4-20-100 |
|
Max. load working table |
KG |
2000 |
|
Feed speed |
mm/min |
20-1800 |
|
Rapid feed speed |
mm/min |
3500 |
|
Spindle speed range |
rpm |
35-1345 |
|
Spindle speed step |
steps |
12 |
|
Distance from spindle axis to column guide way |
mm |
610 |
|
Spindlemotor power |
KW |
7.5 |
|
Overall dimensions |
mm |
3300x2380x2750 |
|
Machineweight |
KG |
7300 |
