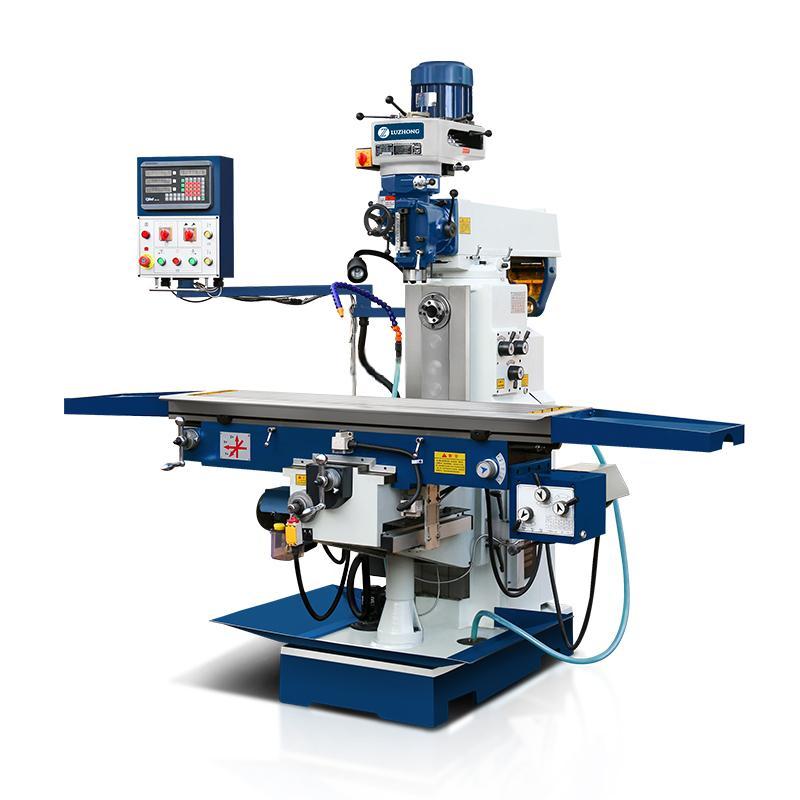

X6332 Turret Milling Machine
from /month
MACHINE description
|
Specifications |
Units |
X6332 |
|
Table size |
mm |
1370×320 |
|
Tabletravel |
mm |
800/300/400 |
|
T slot(number-width-pitch) |
mm |
3-14-70 |
|
Spindle taper |
ISO407:24 |
|
|
Spindle speed range |
rpm |
(V)50HZ:65-4500 60HZ:80-544016steps (H) 40-130012steps Optional:variable65-4000 |
|
Spindle travel |
mm |
127 |
|
Spindle feed range |
mm |
0.04,0.08,0.15 (3 steps) |
|
Distance between spindle nose and table surface |
mm |
140-540 |
|
Distance between spindleaxisand table surface |
mm |
0-400 |
|
Mainmotor power |
kw |
2.2(V)3(H) |
|
Head rotation (left - right ) |
° |
±90° |
|
Head rotation (front - rear) |
° |
±45° |
|
Weight |
kg |
2000 |
|
Overall dimension |
mm |
2200x1820x2350 |
