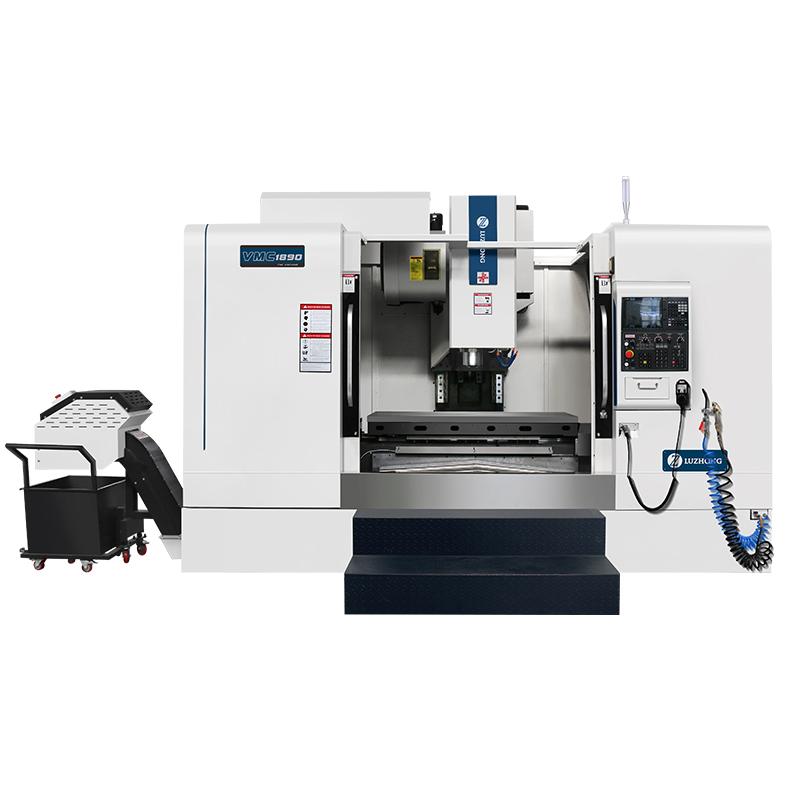

VMC1890 Vertical Machining Center
from /month
MACHINE description
|
SPECIFICATIONS |
Units |
VMC1890 |
|
Table size |
mm |
2000*900 |
|
X axis travel |
mm |
1800 |
|
Y axis travel |
mm |
900 |
|
Z axis travel |
mm |
700 |
|
Max. worktable load |
kg |
1600 |
|
T slot(number-width*pitch) |
- |
5-22*165 |
|
Max. spindle speed |
rpm |
6000/8000 |
|
Spindle taper |
BT |
BT50 |
|
Main motor power |
kw |
18.5 |
|
X/Y/Z rapid traverse speed |
m/min |
15/15/12 |
|
Cutting feed speed |
mm/min |
1-5000 |
|
Guide rail type |
- |
X/Y axis linear rail Z axis hard rail |
|
Distance from spindle axis to column surface |
mm |
950 |
|
Distance between spindle nose and table surface |
mm |
115-815 |
|
Positioning accuracy |
mm |
±0.01 |
|
Repeat positioning accuracy |
mm |
±0.0075 |
|
Tool magazine |
- |
Arm 24 |
|
Max. tool diameter |
mm |
112/200 |
|
Max. tool weight |
kg |
18 |
|
Machine weight |
kg |
16000 |
|
Overall dimension |
mm |
5100*3800*3200 |
