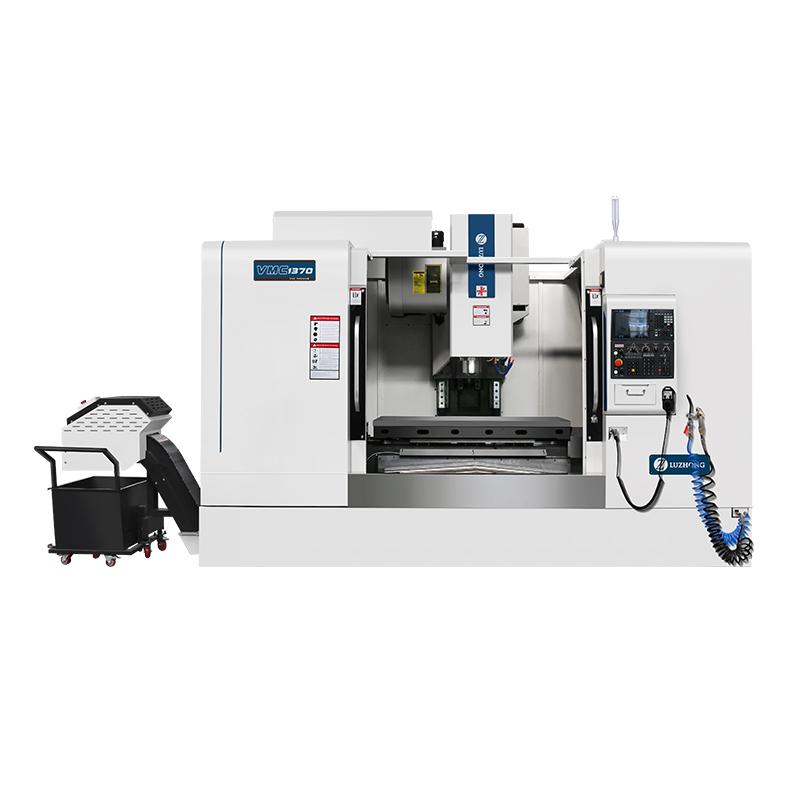

VMC1370 Vertical Machining Center

SPECIFICATIONS

Units

VMC1370

VMC1370

Table size

mm

1360*700

1360*700

X axis travel

mm

1300

1300

Y axis travel

mm

700

700

Z axis travel

mm

700

600

Max. worktable load

kg

1100

1300

T slot(number-width*pitch)

-

5-18*110

5-18*122

Max. spindle speed

rpm

8000

6000

Spindle taper

BT

BT40

BT50

Main motor power

kw

11/15

15/18.5

X/Y/Z rapid traverse speed

m/min

24/24/18

24/24/18

Cutting feed speed

mm/min

1-6000

1-6000

Guide rail type

-

Linear rail

X/Y axis linear rail Z axis hard rail

Distance from spindle axis to column surface

mm

750

780

Distance between spindle nose and table surface

mm

100-800

150-750

Positioning accuracy

mm

±0.0075

±0.0075

Repeat positioning accuracy

mm

±0.005

±0.005

Tool magazine

-

Arm 24

Arm 24

Max. tool diameter

mm

78/120

112/200

Max. tool weight

kg

18

18

Machine weight

kg

8500

10500

Overall dimension

mm

3870*2900*3000

3870*2900*3000
