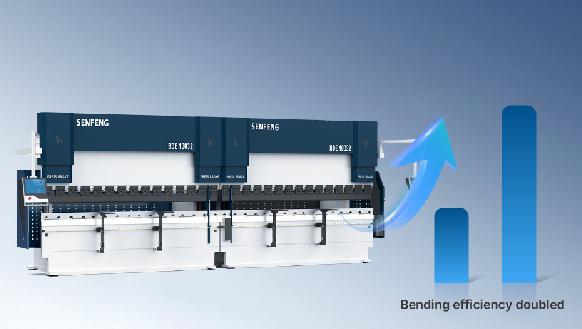

Take Concurrent Control of Two Machines
Due to specially designed synchronization device, two bending machines can work concurrently to address the difficulty of bending ultra-long sheets. Both synchronous operation and working alone are available to provide all users with different chooses.
- Double both bending length and efficiency
- Bending precision unchanged

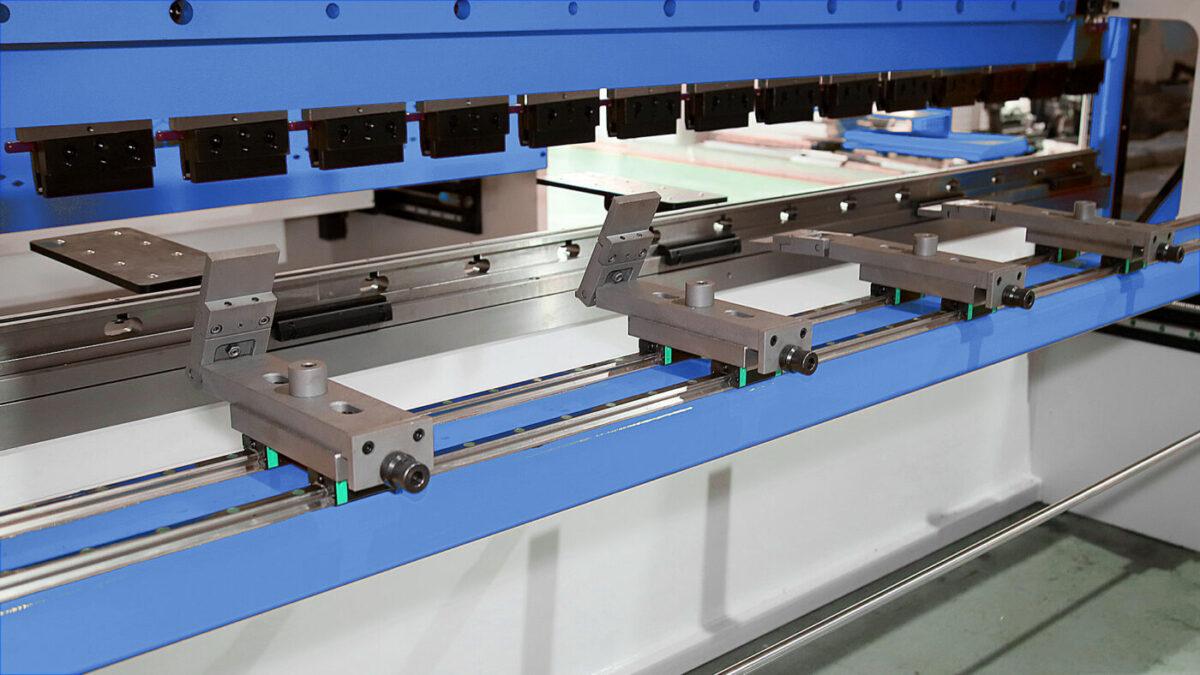

Sheet Positioning in Right Place
The machine has multi-axis backgauge and uses worm and worm gear to move up and down, backwards and forwards. 4 backgauge fingers are also attached in order to prevent sheets from sagging and make workpiece bending better.
- Multi-axis backgauge and 4 backgauge fingers
- X-axis speed 500mm/s, 1.5 times faster than others
Mechanical Deflection Compensation
In order to make bending precision high enough, the system is used for compensating the upper and lower beam in case of flexural deflection by controlling wedge blocks based on actual compensations. With that, it is good to bridge the difference between bending sheets tellingly.
- Several sets of wedge blocks
- Lots of compensation points
- No compensation dead zone

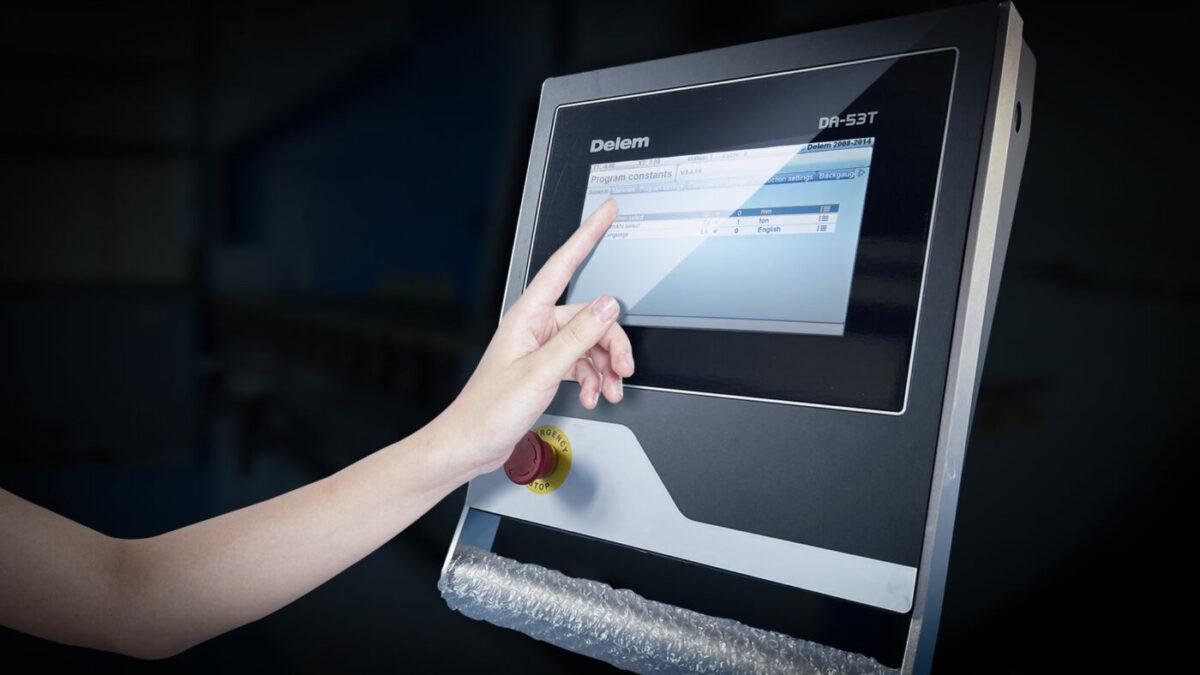

Touch-screen CNC System
Five-axis linkage CNC system has 10.1-inch TFT touch screen with high resolution and true color. It can take real-time control of all core components. Its user interface is simply designed and graphical programming is easy to be done.
- Hot-key touch navigation
- Special library of bending tools and materials
- Advanced Y-axis algorithm for open- and closed-loop control
- Reserve USB memory interface
