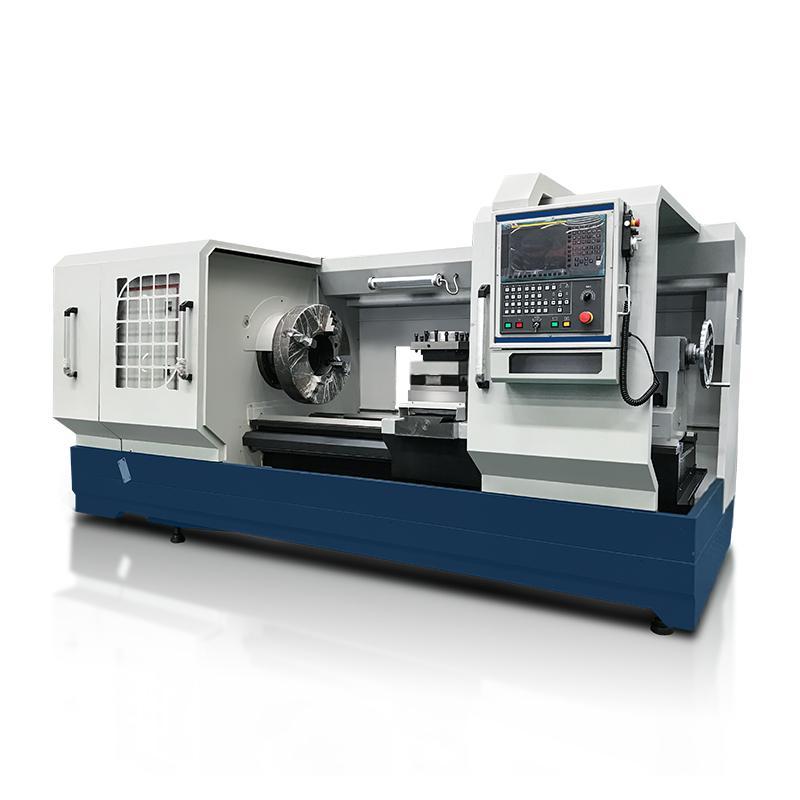

QK1343 CNC Pipe Threading Lathe Machine
from /month
MACHINE description
|
SPECIFICATION |
Units |
QK1343 |
|
Swing over bed |
mm |
1000 |
|
Swing over cross slide |
mm |
610 |
|
Distance between centers |
mm |
1500/3000 |
|
Pipe threading range |
mm |
270-430 |
|
Guideway width |
mm |
755 |
|
Max. load capacity |
T |
6 |
|
Spindle bore |
mm |
440 |
|
Spindle speed steps |
- |
VF. 3 steps |
|
Spindle speed range |
rpm |
8-205 |
|
Chuck |
mm |
φ10004-jaw electric |
|
Turret/tool post |
- |
CNC turret 4 position |
|
Tool shank size |
mm |
40 x 40 |
|
X axis travel |
mm |
520 |
|
Z axis travel |
mm |
1250/2750 |
|
X axis rapid traverse |
mm/min |
4000 |
|
Z axis rapid traverse |
mm/min |
4000 |
|
Tailstock quill diameter |
mm |
φ160 |
|
Tailstock quill taper |
- |
MT6 |
|
Tailstock quill travel |
mm |
300 |
|
Main spindle motor |
kW |
22 |
|
Coolant pump motor |
kW |
0.125 |
|
Weightfor 1500 |
kg |
13000 |
|
Weightfor 3000 |
kg |
14000 |
|
Dimension for1500 |
mm |
5000x2220x2120 |
|
Dimension for 3000 |
mm |
6500x2220x2120 |
