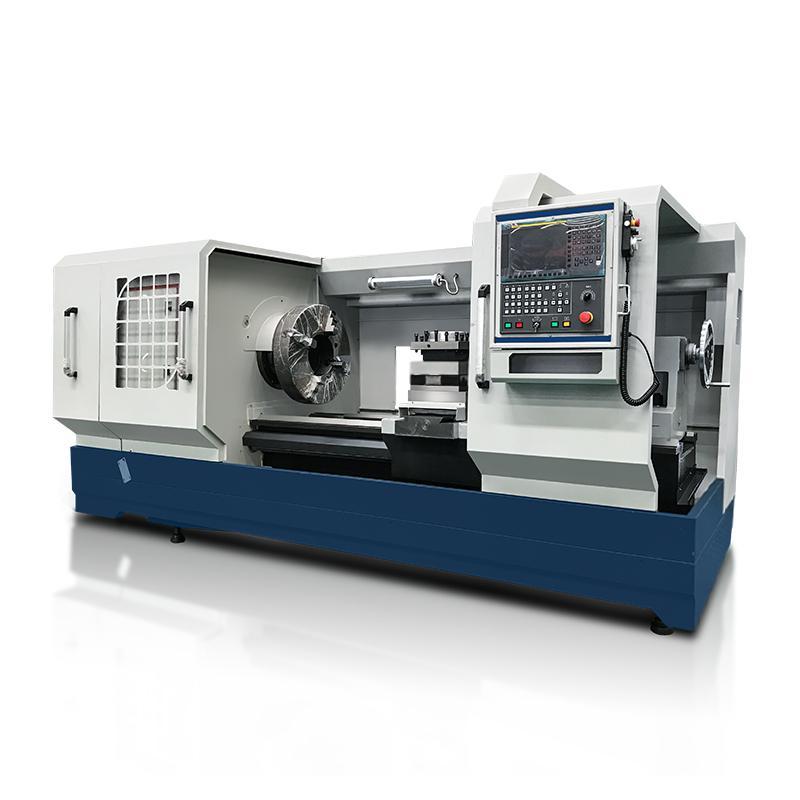

QK1322 CNC Pipe Threading Lathe Machine
from /month
MACHINE description
|
SPECIFICATION |
Units |
QK1322 |
|
Swing over bed |
mm |
630/800 |
|
Swing over cross slide |
mm |
340/520 |
|
Distance between centers |
mm |
1000/1500/3000 |
|
Pipe threading range |
mm |
50-220 |
|
Guideway width |
mm |
550 |
|
Max. load capacity |
T |
3 |
|
Spindle bore |
mm |
225 |
|
Spindle speed steps |
- |
VF. 4 steps |
|
Spindle speed range |
rpm |
20-550 |
|
Chuck |
mm |
φ500 3-jaw manual |
|
Turret/tool post |
- |
CNC turret 4 position |
|
Tool shank size |
mm |
32 x32 |
|
X axis travel |
mm |
320/420 |
|
Z axis travel |
mm |
850/1350/2850 |
|
X axis rapid traverse |
mm/min |
4000 |
|
Z axis rapid traverse |
mm/min |
6000 |
|
Tailstock quill diameter |
mm |
φ100 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill travel |
mm |
250 |
|
Main spindle motor |
kW |
11 |
|
Coolant pump motor |
kW |
0.125 |
|
Weightfor1000 |
kg |
4700 |
|
Weightfor 1500 |
kg |
5200 |
|
Weightfor 3000 |
kg |
6200 |
|
Dimension for1000 |
mm |
5000x1880x1850 |
|
Dimension for 1500 |
mm |
6500x1880x1850 |
|
Dimension for 3000 |
mm |
7500x1880x1850 |
