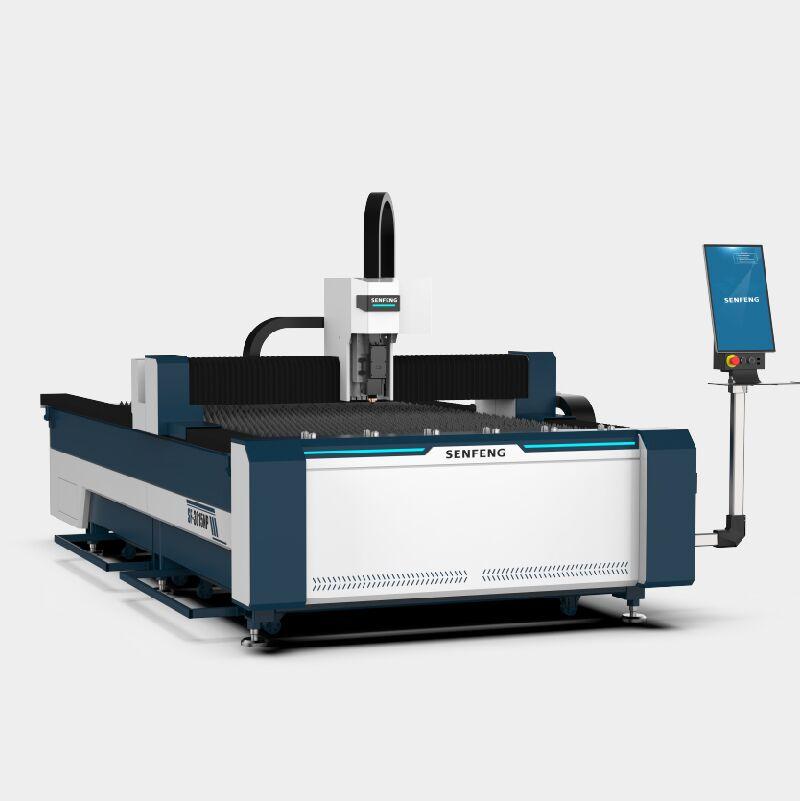

Compact in Structure
The machine is designed as open-style with no top cover, allowing full visibility of whole work process. Its side-mounted eye wheels enable loading & unloading from the left, right, and rear side easily.
* Save floor space (only 12m2) because of its single platform and built-in laser generator
* Integrated power distribution cabinet, with separating strong and weak current to reduce electrical interference
Need Much Less Freights
After packaging upgrades, 6 sets of 3015NP can be packaged in 1 40HQ container. Such packaging is very good for bulk buyers. For individual customers, LCL is also supported at much less freights.

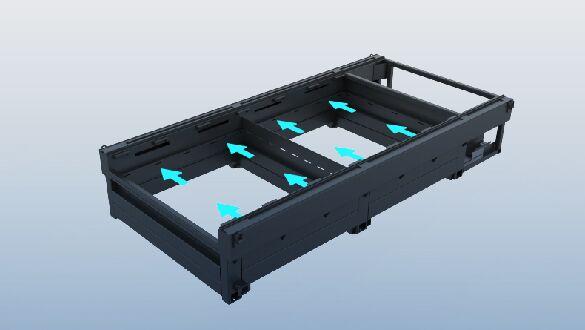

Keep Your Workshop Clean
To make eco-friendly effects better, we offer double ventilating ducts to enable concurrent blowing and ventilation. With air inlet and outlet, air ventilation in machine tool bed is greatly accelerated, so, open-style machine also enjoys favorable dust removal results.
* Double ventilating ducts
* Concurrent blowing and ventilation
Intelligent Bus-based CNC System
The system is equipped with 21.5-inch touch screen. It is easy to install and debug, featuring rapid and fast data transmission, low failure rate and easy maintenance. With rich cutting crafts and database, users can invoke cutting parameters at will.
* Disc centering
One-click positioning of disc center to improve cutting accuracy
* Multi-stage piercing
Adjust to sheets of different thicknesses automatically during cutting to ensure cutting quality
* Automatic obstacle avoidance
Avoid possible collision, protect both machine and workpiece

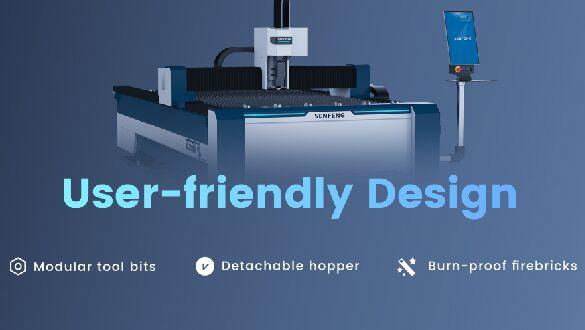

User-friendly Design
Based on our years of design experience and user feedback, 3015NP is further upgraded in machine structure and functions. So, users will get the better cutting service.
* Modular tool bits
Secured with screws for easy disassembly and replacement
* Detachable hopper
Enjoy easy use and change if needed
* Burn-proof firebricks
Protect machine tool bed from burning loss at high temperature
