Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

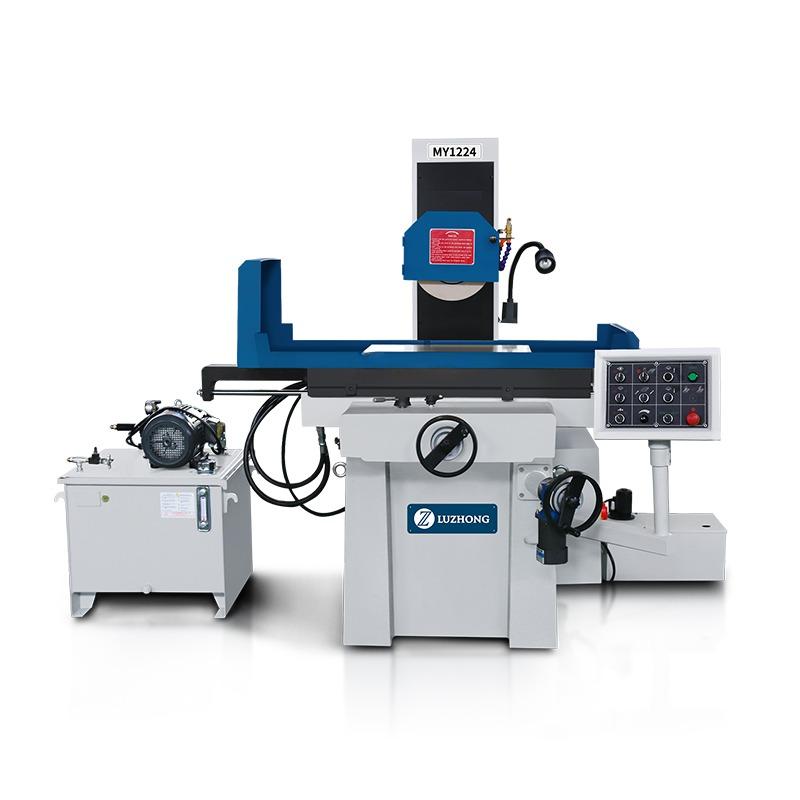

MY1022 Hydraulic Surface Grinding Machine
MACHINE description
| Specifications | Units | MY1022 | ||
| Workbench | Worktable size (L × W) | mm | 540×250 | |
| Max. travel of table | mm | 560×260 | ||
| Table T slot (slot number × slot width) | mm | 1×14 | ||
| Grinding head | Grinding wheel size (O.D × W × I.D) | mm | φ200×20×Φ31.75 | |
| Distance spindle center to table | mm | 450 | ||
| Grinding wheel speed | 50Hz | r/min | 2850 | |
| Grinding wheel speed | 60Hz | r/min | 3360 | |
| Feed amount | Table longitudinal speed | m/min | 3–20 | |
| Transverse feed (handwheel) | Continuous (stepless) | mm/min | 600 | |
| Intermittent (stepless) | mm/times | 0–5 | ||
| Handwheel per turn | mm | 4.0 | ||
| Handwheel per lattice | mm | 0.02 | ||
| Vertical feed (handwheel) | Handwheel per turn | mm | 1.25 | |
| Handwheel per lattice | mm | 0.01 | ||
| Hydraulic system | Hydraulic motor | kW | 1.5 | |
| Working pressure | Mpa | 3 | ||
| Fuel tank capacity | L | 80 | ||
| Maximum flow rate | L/min | 18 | ||
| Motor power | Spindle motor | kW | 1.5 | |
| Cooling motor | W | 40 | ||
| Working accuracy | Base parallelism | mm | 300:0.005 | |
| Surface roughness | μm | Ra0.32 | ||
| Machine weight | Net weight | kg | 950 | |
| Gross weight | kg | 1050 | ||
| External size (L × W × H) | mm | 1680×1220×1720 | ||
| Packing size (L × W × H) | mm | 1730×1290×1940 | ||
