• iTransTower

iTransTower

MACHINE description

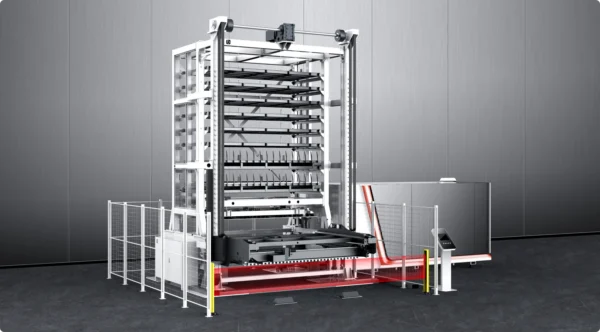

The automatic device iTransTower is compatible with our multiple cutting machines and capable of fully automatic sheet loading, unloading, and storage.

Efficient and Intelligent Continuous Processing

Integrated Functions

The iTransTower integrates material loading, unloading, and storage and it can achieve simultaneous material loading and unloading without excessive manual intervention.

Efficient Loading

One iTransTower can achieve the loading, unloading and storage of materials for multiple cutting machines. This streamlines the production process and maximize productivity.

Smart Zoning

The iTransTower can load different-sized sheets and sheets can be adjusted with just a single click, which greatly reduces manual intervention.

Error Warning

With material detection, shortage alarms and abnormal material quantity alarms, the iTransTower can reduce scrap rates.

Compatible Models

Bodor P

Bodor P

Applicable Industries

Widely applied in hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment.

PARAMETERS

Technical Parameters

Parameter Value
Loading Dimensions 1000mm*1000mm-3048mm*1524mm
Max. Sheet Thickness 20mm
Max. Loading Sheet Size 3048mm*1524mm
Min. Loading Sheet Size 1000mm*1000mm
Overall Dimensions 12300mm*12000mm*6100mm
Weight
Max. Loading Weight 720kg
Min. Sheet Thickness 0.8mm
Z-Axis Travel

*All product information provided on this website is for reference only.
Specific details are subject to the actual product.
