iLoader

MACHINE description

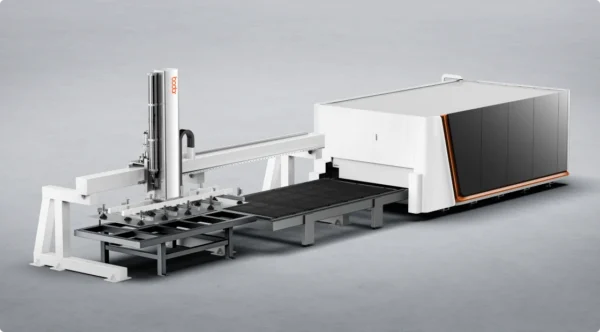

This automatic loading device is compatible with our P/B/C Series. And it can achieve fully automatic loading of metal sheets without manual intervention, reducing workforce input and lowering operational risks.

Automatic Loading

Flexible Production

iLoader

Thick Sheet Loading

iLoader can automatically load metal sheets up to 20mm, eliminating traditional loading methods such as cranes and forklifts.

Max. Space Utilization

iLoader takes up minimal floor space, maximizing the production space.

Safety Protection

With a table positioning feedback mechanism, iLoader combines automatic safety interlocking with the main unit to enhance safety.

Flexible Positioning

iLoader can be positioned left or right according to the on-site processing environment.

Compatible Models

Compatible Models

Laser Metal Sheet Cutting Machines Bodor P

Bodor P

Bodor C
Bodor C

Bodor B
Bodor B

Applicable Industries

Widely applied in hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment.

PARAMETERS

Technical Parameters

Model iLoader 6 iLoader 3 iLoader 4
Loading Dimensions 3048mm*1524mm,1500mm*1200mm,1000mm*1000mm 3048mm*1524mm,1500mm*1200mm,1000mm*1000mm 1000mm*1000mm,4000mm*2000mm
Max. Sheet Thickness 20mm 20mm 20mm
Max. Loading Sheet Size 3048mm*1524mm 3048mm*1524mm 4000mm*2000mm
Min. Loading Sheet Size 1000mm*1000mm 1000mm*1000mm 1000mm*1000mm
Overall Dimensions 5000mm*2500mm*3100mm 5000mm*2500mm*3100mm 9000mm*3400mm*3500mm
Weight 1000kg 1000kg 3500kg
Max. Loading Weight 700Kg 700Kg 1300kg
Min. Sheet Thickness 1mm 1mm 1mm
Z-Axis Travel 400mm

*All product information provided on this website is for reference only.
Specific details are subject to the actual product.
