Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

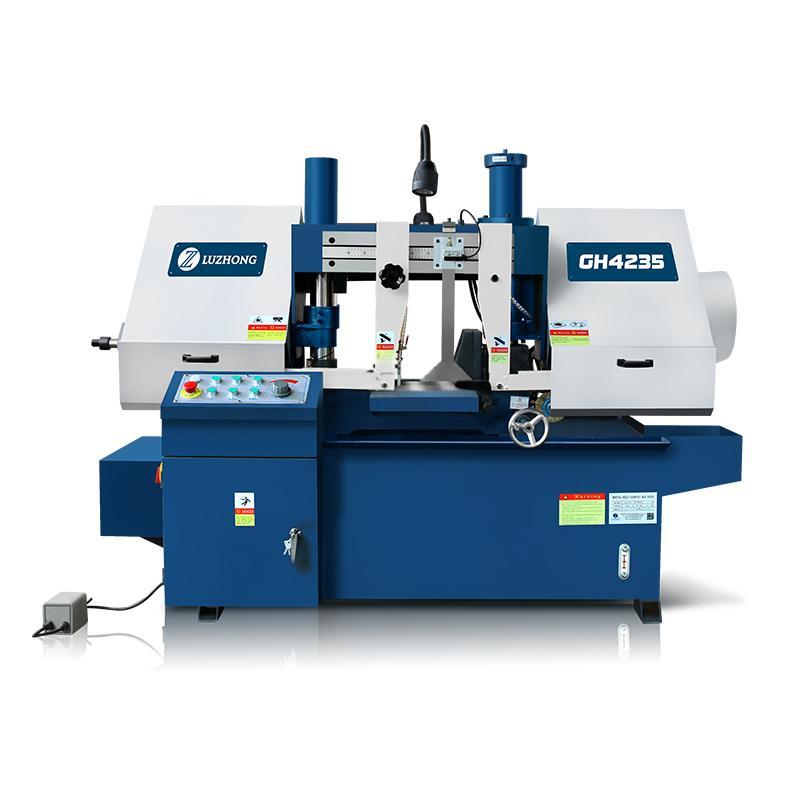

GH4235 Band Saw Machine
from /month
MACHINE description
| Model | Units | GH4235 | |
| Cutting capability | Circular | mm | 350 |
| Rectangular | mm | 350x350 | |
| Blade speed | m/min | 27、45、69 | |
| Blade size | mm | 4115*34*1.1 | |
| Main motor power | kw | 3 | |
| Hydraulic motor power | kw | 0.55 | |
| Coolant pump（w） | w | 40 | |
| Work clamping method | - | Hydraulic vise | |
| Machine weight | kg | 1000 | |
| Overall dimension | mm | 1980*1110*1600 | |
| Package Size | mm | 2100*1150*1650 | |
CHARACTERISTICS
The main performance characteristics：
- Saw frame travels across solid dual-column guides
- Rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy
- Ideally positioned control panel within comfortable reach on top of the saw frame
- At the end of each sawing cycle, the saw blade frame will automatically return to the home position
- Tthrottle valve allows infinitely variable saw frame feed
- Two cutting speeds for a wide spectrum of materials and workpiece diameters
- Manually adjustable workpiece clamping and linear stop
- Coolant system
