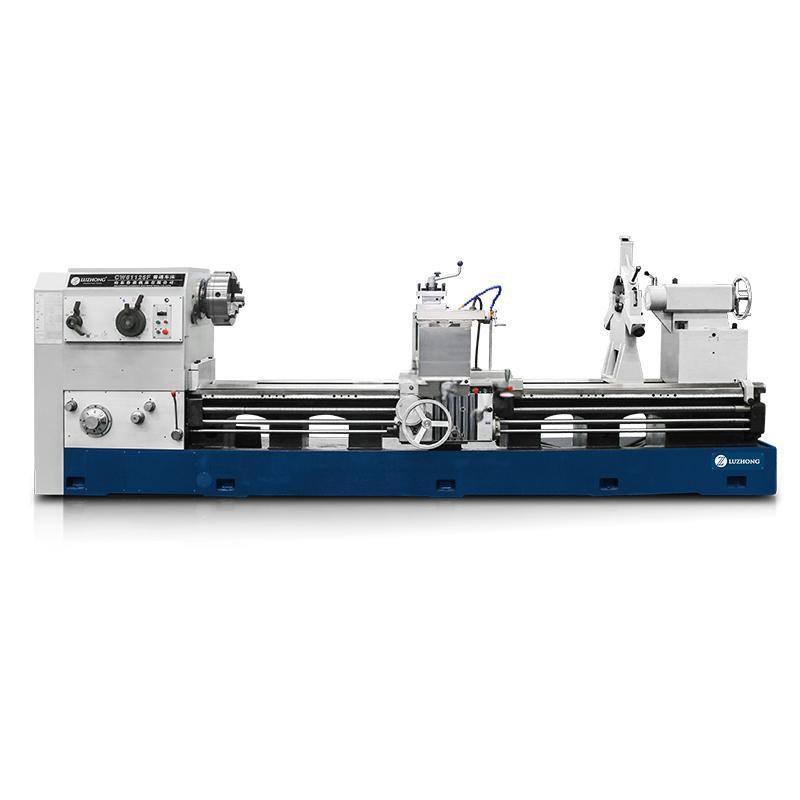

CW61125G Heavy Duty Lathe Machine

Specification

Unir

CW61125G

Swing over bed

mm

1300

Swing over cross slide

mm

900

Distance between centers

mm

3000-10000

Guideway width

mm

1100

Max. load capacity

T

10

Spindle bore

mm

100

Spindle bore taper

-

Metric φ120/MT6

Spindle nose type

-

1:30 shorten spindle head

Spindle speed steps

-

FWD.21 steps

Spindle speed range

rpm

3.15-315

Chuck

mm

φ1250 4-jaw manual

Turret/tool post

-

Manual turret 4 position

Tool shank size

mm

45 x 45

X axis travel

mm

850

Z axis travel

mm

1350-9750

X axis feed grade/range

mm/r

56/0.05-6

Z axis feed grade/range

mm/r

56/0.1-12

X axis rapid traverse

mm/min

1870

Z axis rapid traverse

mm/min

3740

Metric thread grade/range

mm

44/1-120

Inch thread grade/range

T.P.I

31/28-3/8

Module thread grade/range

mm

-

DP thread grade/range

D.P.

-

Tailstock quill diameter

mm

Φ280

Tailstock quill taper

-

1:7

Tailstock quill travel

mm

300

Main spindle motor

kW

55

Rapid traverse motor

kW

1.5

Coolant pump motor

kW

0.37

Width x Height

mm

2050x1980

Length

mm

6400-13400

Net weight

T

22.6(add 1050kg per 1m longer)
