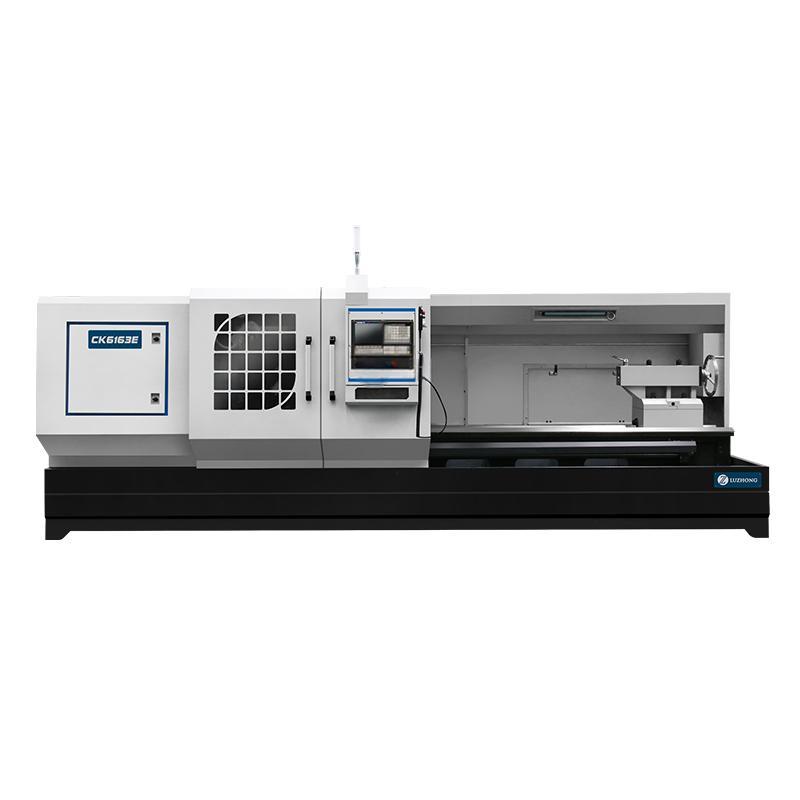

CK6163E Heavy Duty CNC Lathe Machine
from /month
MACHINE description
|
SPECIFICATIONS |
Units |
CK6163E |
|
|
Manual |
HYD. |
||
|
Swing over bed |
mm |
630 |
|
|
Swing over cross slide |
mm |
350 |
|
|
Distance between centers |
mm |
1000/1500/2000/3000/4000/5000/6000/7000/8000 |
|
|
Guideway width |
mm |
550 |
|
|
Max. load capacity |
T |
3 |
|
|
Spindle bore |
mm |
104 |
|
|
Spindle bore taper |
- |
Metric φ120/MT5 |
|
|
Spindle nose type |
- |
C11 |
|
|
Spindle speed steps |
- |
VF. 3 steps |
HYD. 4 steps |
|
Spindle speed range |
rpm |
10-1000 |
17-1000 |
|
Chuck |
mm |
φ315 3-jaw manual |
|
|
Turret/tool post |
- |
Electric 4 position |
|
|
Tool shank size |
mm |
32*32 |
|
|
X axis travel |
mm |
320 |
|
|
Z axis travel |
mm |
850/1350/1850/2850/3850/4850/5850/6850/7850 |
|
|
X axis rapid traverse |
mm/min |
4000 |
|
|
Z axis rapid traverse |
mm/min |
6000 |
|
|
Tailstock quill diameter |
mm |
φ100 |
|
|
Tailstock quill taper |
- |
MT5 |
|
|
Tailstock quill travel |
mm |
250 |
|
|
Main spindle motor |
kW |
11 |
|
|
Coolant pump motor |
kW |
0.25 |
|
|
Width * Height |
mm |
1750*1850 |
|
|
Length |
mm |
3300/3800/4300/5300/6300/7300/8300/9300/10300 |
|
|
Net weight |
T |
3.7/4.1/4.5/5.3/6.1/6.9/7.7/8.5/9.3 |
|
