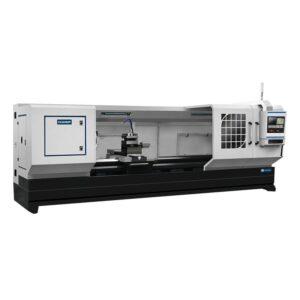

CK6160 CNC Lathe Machine
from /month
MACHINE description
|
SPECIFICATIONS |
Units |
CK6160 |
|
Swing over bed |
mm |
600 |
|
Swing over cross slide |
mm |
350 |
|
Distance between centers |
mm |
750/1000/1500/2000 |
|
Spindle bore |
mm |
52(Optional 80) |
|
Spindle bore taper |
- |
MT6 |
|
Spindle nose type |
- |
A2-6(A2-8) |
|
Spindle speed steps |
- |
Stepless |
|
Spindle speed range |
rpm |
1800 |
|
Turret/tool post |
- |
Electric 4 position |
|
Tool size |
mm |
25*25 |
|
X axis travel |
mm |
300 |
|
Z axis travel |
mm |
750/1000/1500/2000 |
|
X axis rapid traverse |
mm/min |
6000 |
|
Z axis rapid traverse |
mm/min |
8000 |
|
Tailstock quill diameter |
mm |
65 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill travel |
mm |
140 |
|
Main spindle motor |
kw |
5.5KW servo motor |
|
Coolant pump motor |
kw |
0.125 |
|
Weight for 750 |
kg |
1700 |
|
Weight for 1000 |
kg |
1800 |
|
Weight for 1500 |
kg |
2000 |
|
Weight for 2000 |
kg |
2200 |
|
Dimension for 750 |
mm |
2200x1750x1800 |
|
Dimension for 1000 |
mm |
2500x1750x1800 |
|
Dimension for 1500 |
mm |
3000x1750x1800 |
|
Dimension for 2000 |
mm |
3500x1750x1800 |
