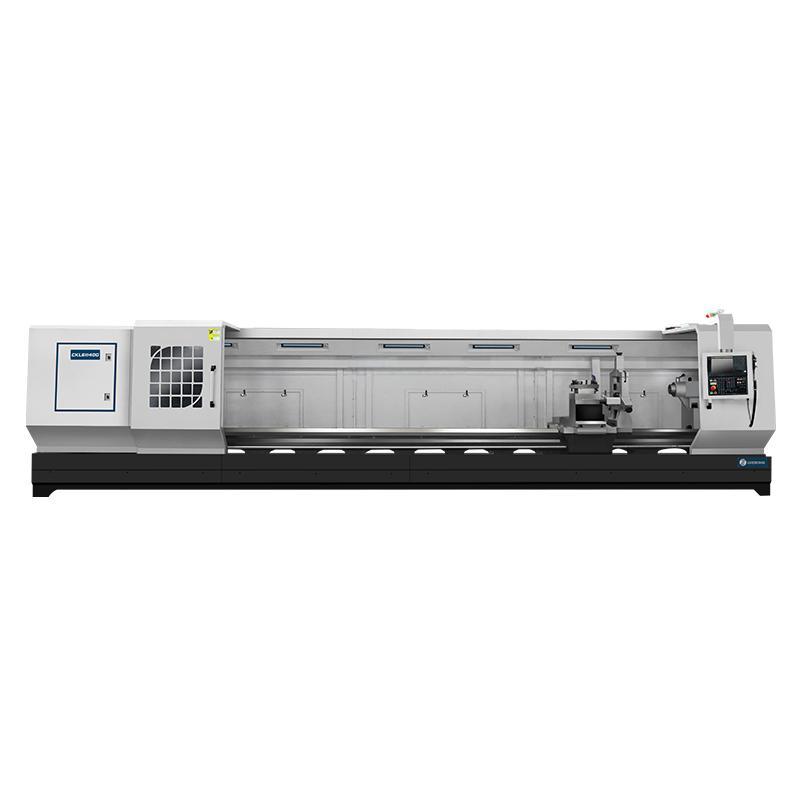

CK61160G Heavy Duty CNC Lathe Machine
from /month
MACHINE description
|
Specification |
Units |
CK61160G |
|
Swing over bed |
mm |
1700 |
|
Swing over cross slide |
mm |
1250 |
|
Distance between centers |
mm |
3000-10000 |
|
Guideway width |
mm |
1100 |
|
Max. load capacity |
T |
10--20 |
|
Spindle bore |
mm |
100 |
|
Spindle bore taper |
- |
Metric 120 |
|
Spindle nose type |
- |
A2-15 |
|
Spindle speed steps |
- |
VF. 4steps(HYD. 4 steps) |
|
Spindle speed range |
rpm |
10-300 |
|
Chuck |
mm |
φ1250 4-jaw manual |
|
Turret/tool post |
- |
Electric 4 position |
|
Tool shank size |
mm |
50*50 |
|
X axis travel |
mm |
830 |
|
Z axis travel |
mm |
2850-9850 |
|
X axis rapid traverse |
mm/min |
4000 |
|
Z axis rapid traverse |
mm/min |
6000 |
|
Tailstock quill diameter |
mm |
φ260 |
|
Tailstock quill taper |
- |
Metric 80 |
|
Tailstock quill travel |
mm |
300 |
|
Main spindle motor |
kW |
30 |
|
Coolant pump motor |
kW |
0.25 |
|
Width * Height |
mm |
2700*2560 |
|
Length |
mm |
6700-13700 |
|
Net weight |
T |
24.6-30.9 |
