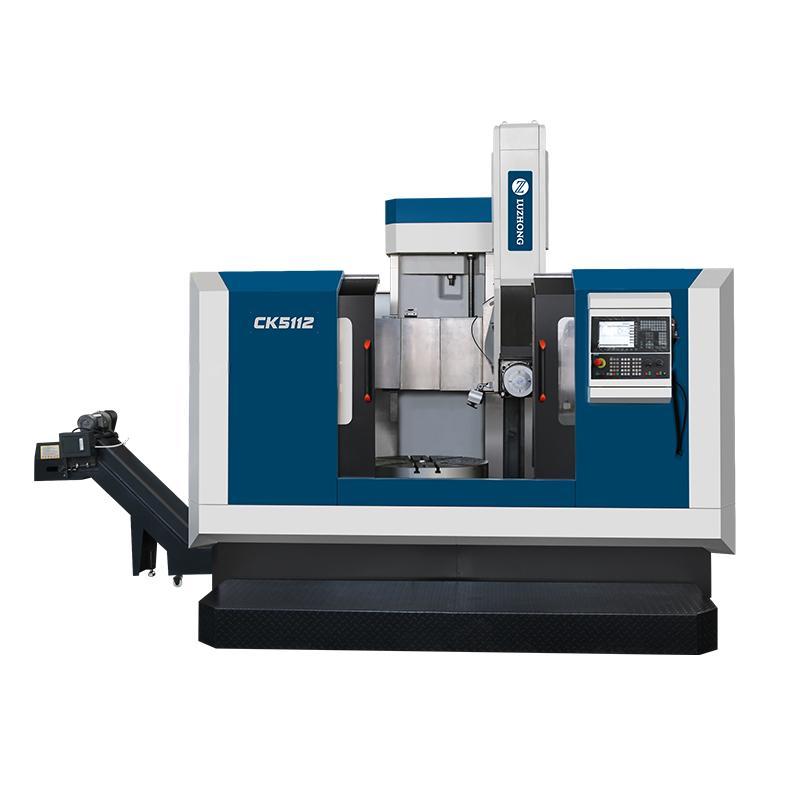

CK5120xH/8 CNC Vertical Lathe Machine
from /month
MACHINE description
|
Specification |
units |
CK5120×H/8 |
|
Max,turning diameler |
mm |
2000 |
|
Table diameter |
mm |
1800 |
|
Max. height of workpiece |
mm |
1250/1400 |
|
Max. weighi of workpiece |
t |
8 |
|
Max. torque oftable |
KN.m |
32 |
|
Spindle speed range (16steps) |
r/min |
3.2-100 |
|
Max. cutting force of rail head |
KN |
22 |
|
Range of tool feed |
mm/min |
0.1-500 |
|
Horizontal tool travel |
mm |
1050 |
|
Vertrical tool travel |
mm |
800 |
|
Tool head srapid traverse |
mm/min |
3750 |
|
Elevating speed of cross rail |
mm/min |
440 |
|
Tool size |
mm |
30×40 |
|
Main motor power |
KW |
30 |
|
Overall dimension |
mm |
3200×2800×4000 |
|
Machine weight(Approx.) |
t |
17/18.5 |
