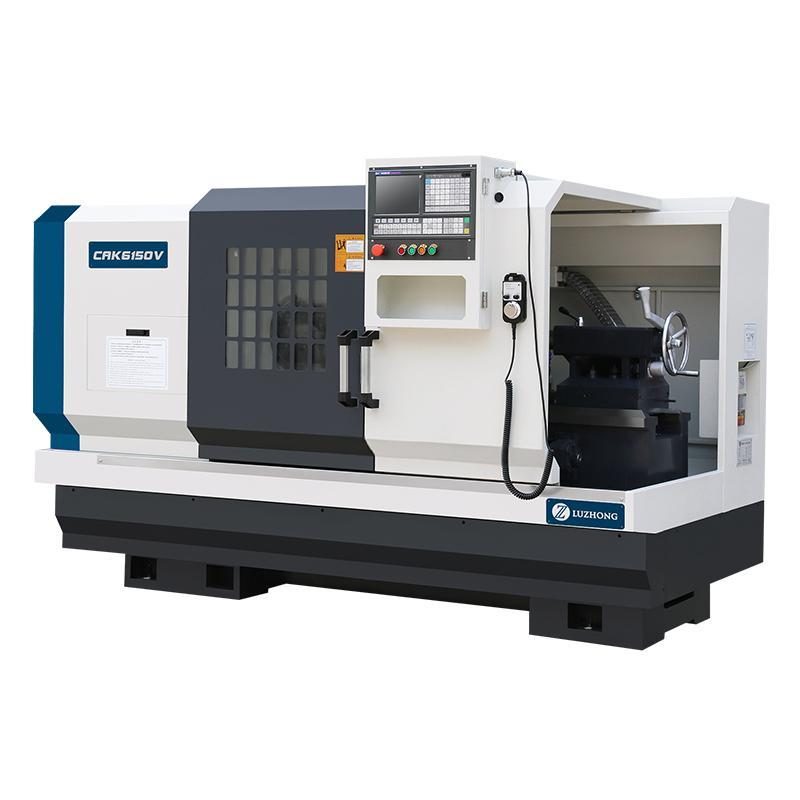

CAK6150V CNC Lathe Machine

SPECIFICATIONS

Units

CAK6150V

Swing over bed

mm

500

Swing over cross slide

mm

250

Distance between centers

mm

1000/1500/2000/3000

Spindle bore

mm

82 (Opt. 130)

Spindle bore taper

-

Metric 90/1:20

Spindle nose type

-

A2-8(Opt.A2-11)

Spindle speed steps

-

Stepless

Spindle speed range

rpm

1800 (Opt. 800)

Turret/tool post

-

Electric 4 position

Tool size

mm

25*25

X axis travel

mm

280

Z axis travel

mm

1000/1500/2000/3000

X axis rapid traverse

mm/min

6000

Z axis rapid traverse

mm/min

8000

Tailstock quill diameter

mm

75

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

150

Main motor power

kw

7.5

Coolant motor power

kw

0.125

Weight for 1000

kg

2900

Weight for 1500

kg

3300

Weight for 2000

kg

3700

Dimension for 1000

mm

2950*1700*1800

Dimension for 1500

mm

3650*1700*1800

Dimension for 2000

mm

4250*1700*1800
