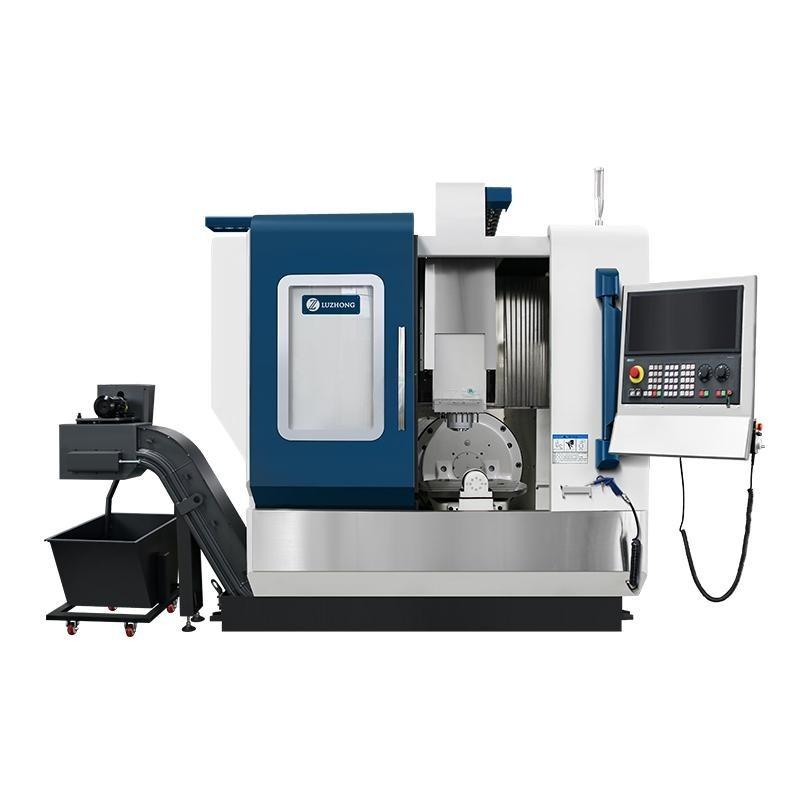

BMC650 5 Axis CNC Machining Center
from /month
MACHINE description
|
SPECIFICATION |
Unit |
BMC650 |
|
Table size |
mm |
φ650X540 |
|
T-slot size |
mm |
14 |
|
T-slot size |
mm |
φ50 |
|
Max.table load |
kg |
300 |
|
X-axis travel |
mm |
650 |
|
Y-axis travel |
mm |
520 |
|
Z-axis travel |
mm |
475 |
|
A-axis rotation range |
° |
±120 |
|
C-axis rotation range |
° |
360 |
|
Distance from spindle nose to table surface |
mm |
150-625 |
|
Spindle taper |
-- |
BBT40 |
|
Max.spindle speed |
rpm |
12000 |
|
Spindle motor power |
kW |
7.5 |
|
Max.torque of spindle |
N.m |
45 |
|
Tool magazine type |
-- |
Arm type |
|
Tool magazine capacity |
pcs |
24 |
|
Max.diameter tool(full/Empty) |
mm |
φ78/φ150 |
|
Max.tool length |
mm |
300 |
|
Max.tool weight |
kg |
8 |
|
Tool change time(T-T) |
s |
1.55 |
|
Rapid feed speed(X/Y/Z) |
mm/min |
42000/42000/42000 |
|
Cutting feed speed(X/Y/Z) |
mm/min |
1-10000/1-10000/1-10000 |
|
Positioning accuracy(X/Y/Z) |
mm |
±0.005/300 JIS |
|
Positioning accuracy(A/C) |
" |
±5 |
|
Repeat positioning accuracy(X/Y/Z) |
mm |
±0.003 JIS |
|
Repeat positioning acauracy(A/C) |
" |
4 |
|
Machine weight |
kg |
8500 |
|
Machine overall size |
mm |
3970X3210X2800 |
