- Advanced Integration: This machine seamlessly integrates mechanical and electrical components, utilizing a user-friendly touch interface and screen display. The servo motor controls the longitudinal movement of the milling plate and the vertical movement and rotation of the spindle, ensuring precise operation.
- Efficient Three-Axis Control: Featuring a three-axis linkage control system, this machine boasts high precision and efficiency, offering superior functionality.
- Sleek Design and Easy Operation: With the sleek and stable design of the EasyTouch control system, achieving a finishing effect at RA1.6 is effortless. Its impressive flatness reaching 0.01mm/300mm mirrors the precision of grinding operations.
- Versatile Applications: Ideal for medium and small-size cylinder heads, cylinder blocks, and other industrial parts requiring high-precision finishes, this machine excels in achieving top-quality results.

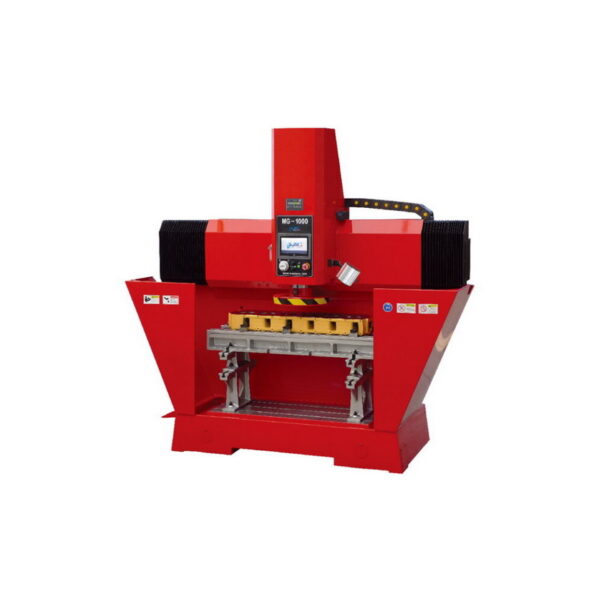

Block grinding and milling machine MG1000
MSRP $27 000
MACHINE description
| Weight | 1500 kg |
|---|---|
| Dimensions | 210 × 112 × 198 cm |
| Manufacturer | SJMC |
| Model | MG1000 |
| Control System | EasyTouch 3 Axis |
| Spindle Speed | 200 – 1400 rpm stepless |
| Milling Plate Motor | 4 kW |
| Milling Plate Traverse Motor | 0.75 Kw |
| Downfeed Motor | 0.4 kW |
| Max. Milling Length | 1000*300*650 |
| Working Table Surface ( L×D ) | 1400*400 mm |
| Milling Plate Dia. | 300 mm |
| Number of Milling Insert | 8 piece |
| Vertical Movement of Milling Plate | 150 mm |
| Milling Plate Traverse Speeds , Stepless | 200 ~ 1800 mm / min |
| Machine dimensions (L*W*H), mm | 2010*810*1980 |
| Flatness for Grinding | 0.01 mm / 300 mm |
| Surface Roughness for Grinding | 0.63 Ra |
| Package Size ( L×D×H ) | 2250*1100*2200 |
| N.W./ G.W. | 1500/1800 |
| Production time, working days | 60 |
