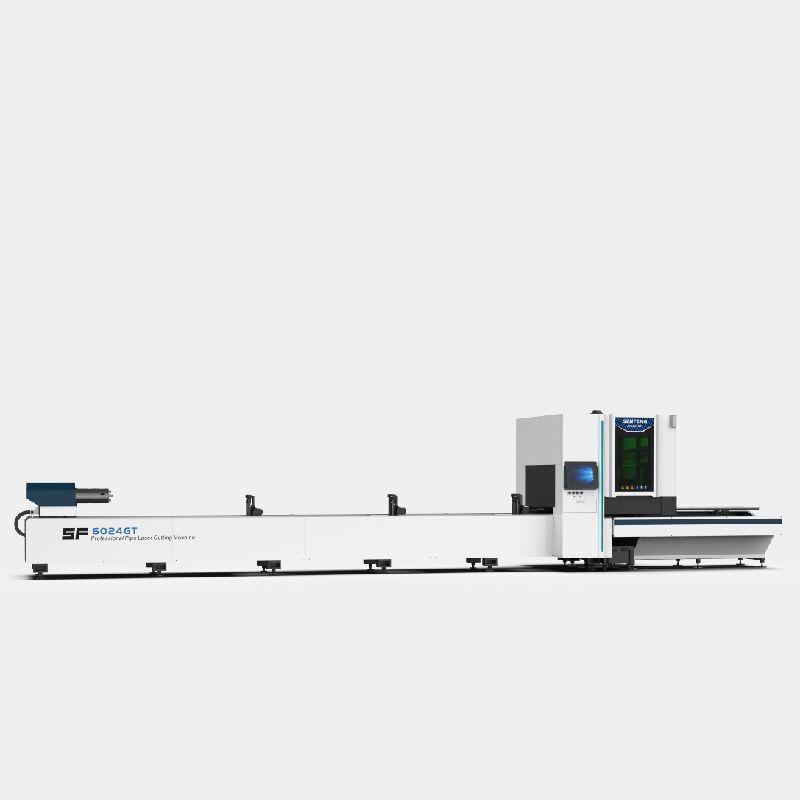

Beveling Tube Laser Cutting Machine SF6024GT

from $13 000/month

Get a special offer

    MACHINE description

    • Power:3kW-6kW
    • Round Tube Diameter:Φ0.39″ -9.0″
    • Square Tube Length:0.39″ *0.39″ -9.0″ *9.0″
    • Bevel Tube Fiber Laser Cutting Machine passed CE/FDA/ETL certifications.

    introduction

    The Laser bevel tube cutting machine has superior performance, which can realize the bevel cutting of the pipe within the range of ±45°. It is equipped with 3D laser cutting head, which can easily cut H steel, I-beam, angle steel, channel steel and other profiles, as well as drop-shaped and concave shaped tubes. Compared with domestic pipe cutting machines of the same level, the processing range expand by 12%.

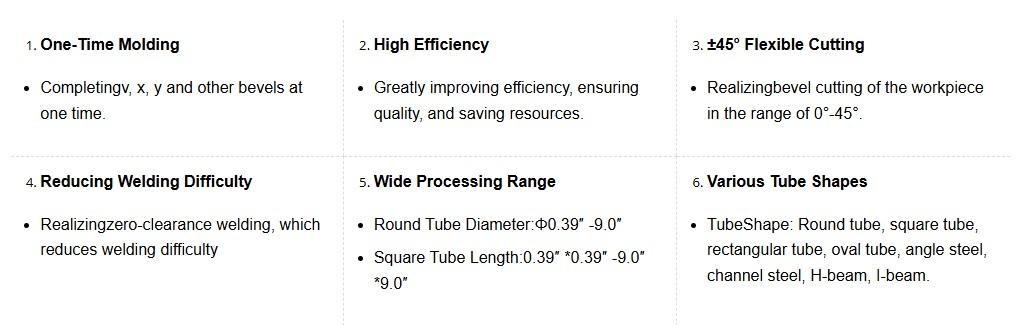

    Advantages of Bevel Tube Fiber Laser Cutting Machine SF6024GT

    Advantages of Bevel Tube Fiber Laser Cutting Machine SF6024GT

    CUTTING SAMPLES

    CUTTING SAMPLESCUTTING SAMPLES
    CUTTING SAMPLESCUTTING SAMPLES
    CUTTING SAMPLESCUTTING SAMPLES

    PARAMETERS

    Technical Parameters of Bevel Tube Fiber Laser Cutting Machine SF6024GT

    • Pipe Processing Range:φ0.39″~9.0″ (Square tube: 0.39″*0.39″~9.0″*9.0″)
    • Laser Power:3000W-6000W
    • Maximum Speed:246’/min
    • Maximum Acceleration:0.25G
    • X/Y Axis Positioning Accuracy:±0.05mm
    • X/Y Axis Repeated Positioning Accuracy:±0.03mm
    • Angle of Processing Bevel:±45°
